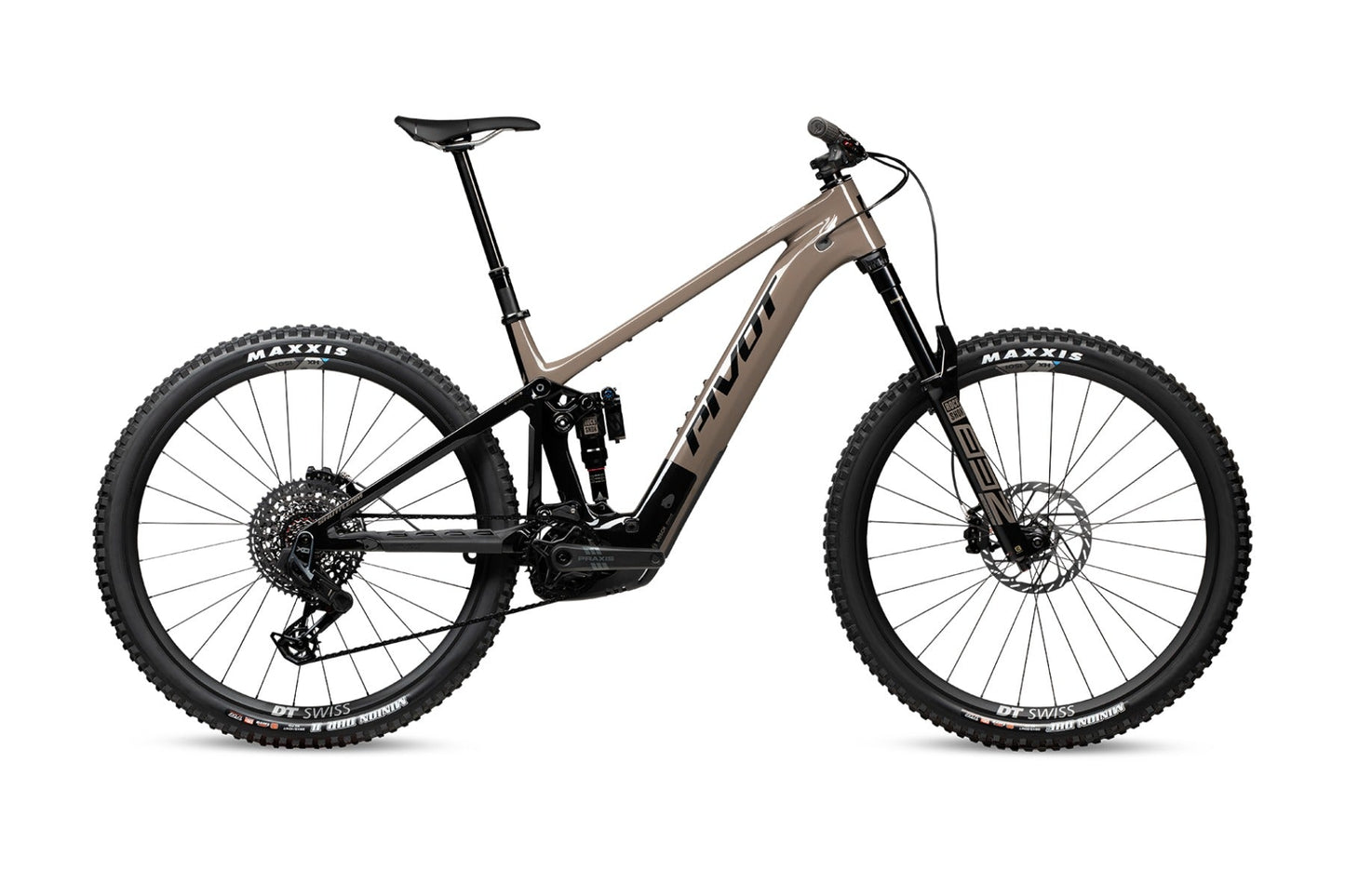

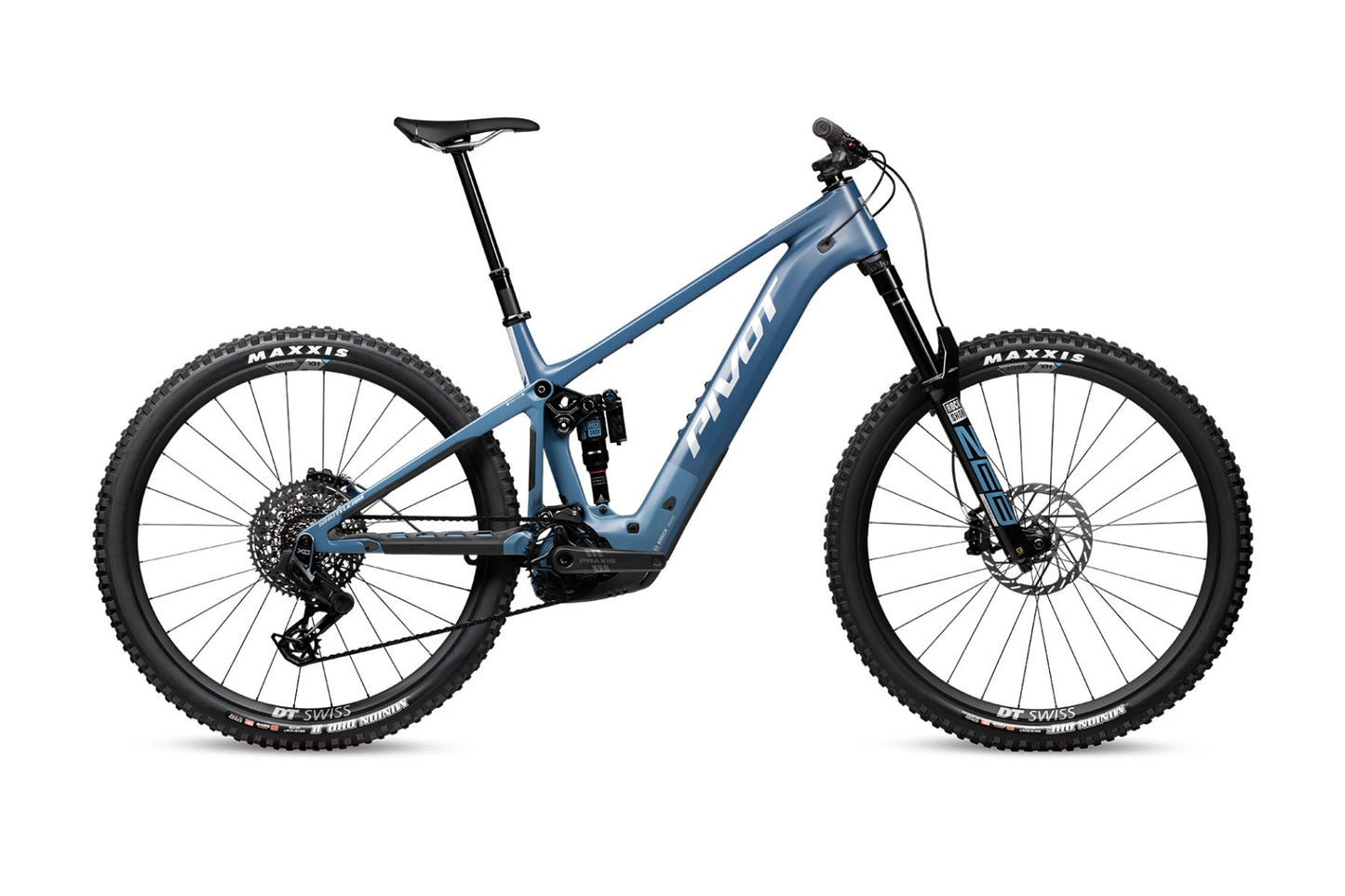

Shuttle AM Pro X0 Eagle Transmission
Shuttle AM Pro X0 Eagle Transmission
Couldn't load pickup availability
The next gen Shuttle AM sets a new all-mountain benchmark. Featuring Bosch’s Gen 5 Performance Line CX and CX-R drive systems, the Shuttle AM turns raw power into pure trail magic. It climbs like it’s got a vendetta against gravity and descends like it has a score to settle. Smooth, responsive, and almost telepathic, it delivers a surreal blend of torque, traction, and pure trail tenacity.
We gave the Shuttle AM a serious power upgrade, and you’ll feel it with every pedal stroke. The new Gen 5 Bosch Performance Line CX drive unit delivers up to 100Nm of torque and 750 watts of peak power, customizable through the eBike Flow app. It delivers quicker engagement, punchier acceleration, and seamless climbing across challenging terrain. The new eMTB+ mode takes things further, adapting in real time to your pedal input and trail conditions for intuitive, dialed-in support right when you need it.
FEATURES:
- Ultralight Hollow Core Carbon Frame
- Featuring Bosch's Gen 5 Performance Line CX (Ride) and CX Race Motors (Pro & Team)
- Long-range 800Wh Battery on all build levels
- Bosch 250wh PowerMore Range Extender Compatible
- Kiox 400C Display (Pro & Team)
- Wheel Mounted Speed Sensor
- Wireless Bosch Remote
- 160mm Fork
- Flip-Chip Upper Link Mount
- Mixed Wheel Compatible
- Pivot Dock Tool System Compatible
- Water Bottle Clearance on All Sizes
- 150mm of Progressive Rear Travel
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System
SPECS:
| Frame | Ultralight Hollow Core Carbon Frame |
| Fork | RockShox Zeb Ultimate 29", 44mm offset, 160mm |
| Rear Shock | RockShox Super Deluxe Ultimate |
| Rims/Wheels | DT Swiss HX1501 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R |
| Hubs | N/A |
| Spokes | N/A |
| Tires | [F] Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA [R] Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA |
| Crankset | Praxis Alloy eCranks E-MTB 34t - 160mm |
| Chain | Sram X0 Eagle Flattop 12-Speed |
| Chain Guide | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | Sram X0 Eagle Transmission 12-Speed |
|
Cassette/Rear Cogs
|
Sram X0 1295 Eagle Transmission 10-52t |
| Shifters | Sram AXS Pod Controller |
| Handlebars | Phoenix Race Low Rise Carbon |
| Stem | Phoenix Team Enduro/Trail |
| Brake Levers | N/A |
| Brakes | Sram Maven Silver 4-piston w/ HS2 Centerlock 200mm Rotors |
| Pedals | Sold Separately |
| Saddle | Pivot Pro E-Bike |
| Seat Post | OneUp Dropper V3 150mm (SM), 180mm (MD), 210mm (LG-XL) |
| Motor | Bosch Gen 5 Performance Line CX Race Edition |
| Battery | 800 Wh |
|
Display/Controller
|
Kiox 400C |
|
Max Assisted Speed
|
20 mph |
| Charger | Bosch |
|
Accessories & Extras
|
N/A |
