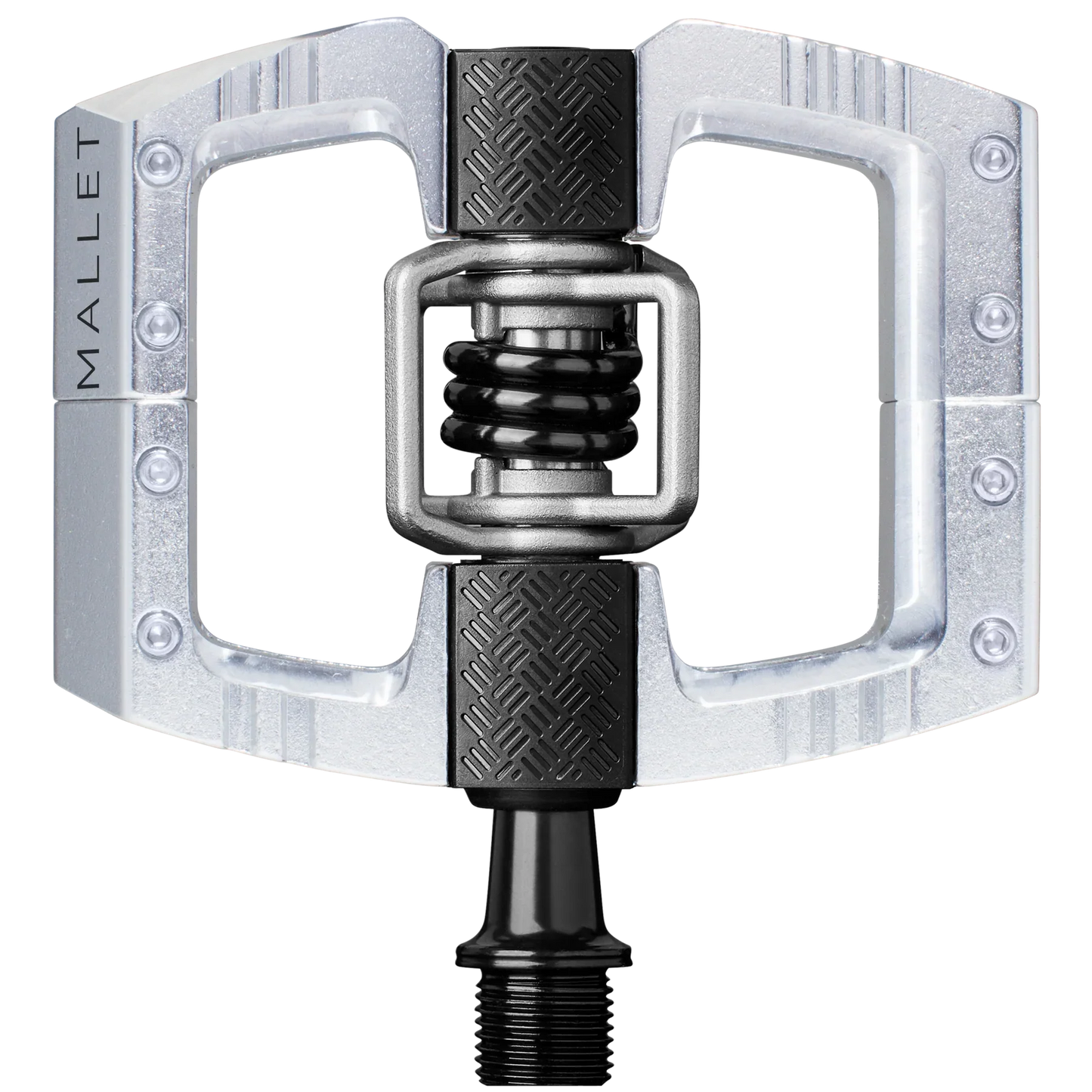

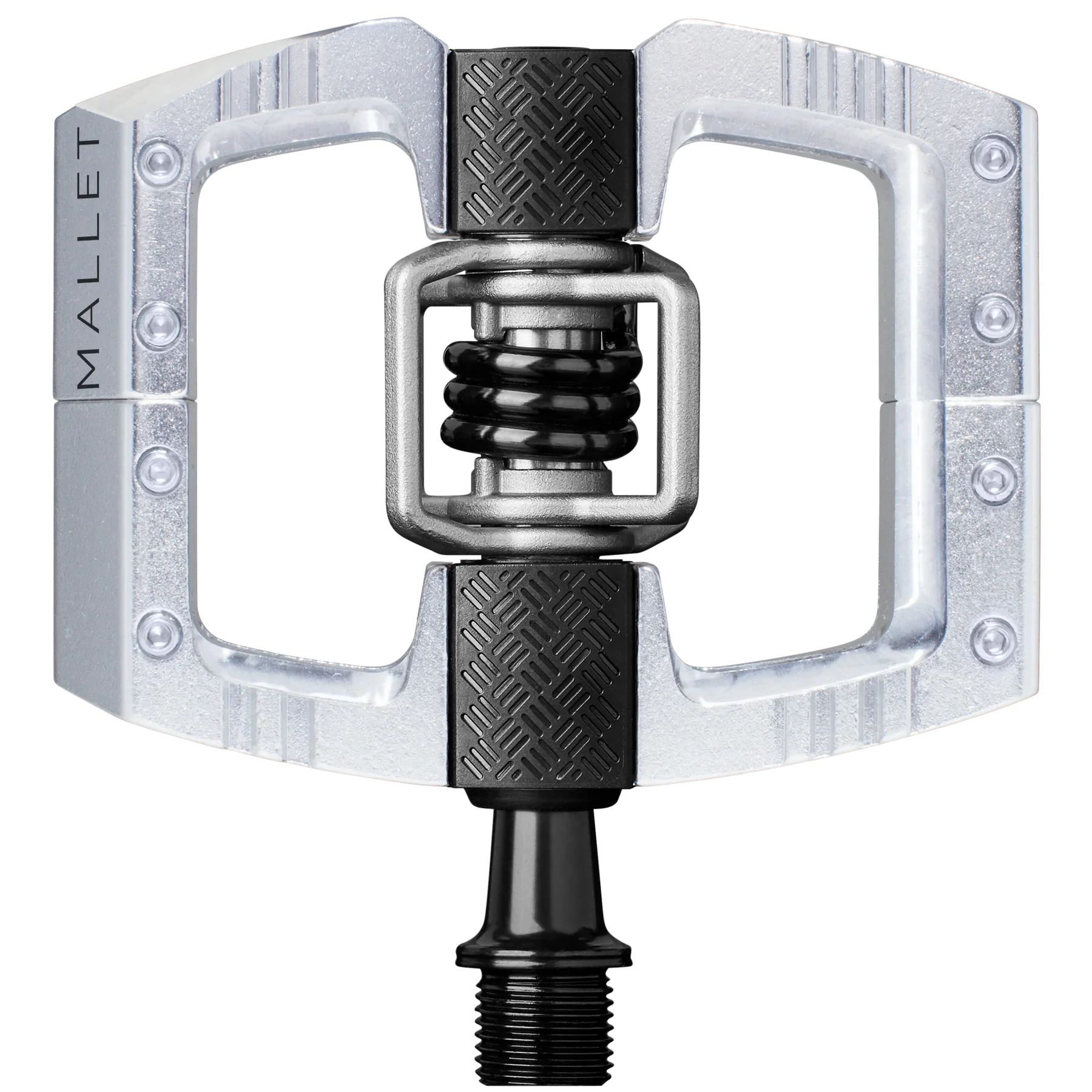

Mallet DH Pedals

Mallet DH Pedals offer a secure and customizable riding experience with their concave platform and eight adjustable pins per side for optimal grip. Featuring traction pad technology and a ribbed body, they provide excellent control even when unclipped. Designed with chamfered edges to minimize rock strikes and a 57mm q-factor for enhanced stability at speed, these pedals also include a 4-sided entry for superior mud shedding. Adjustable float and release angles, combined with a premium bearing and double seal system, ensure durability and smooth performance on every ride.

FEATURES:

• Concave platform for secure foothold
• 8 adjustable pins per side for grip
• Traction pad technology customizable interface
• Ribbed body for better traction when unclipped
• Chamfered edges to reduce rock-strikes
• 57mm q-factor for stability at speed
• 4-sided entry / superior mud shedding
• Customizable float & release angle
• Premium bearing & double seal system

SPECS:

• Body Material: 6061-T6 Aluminum
• Body Dims: (L x W)100mm x 78mm
• Wing Material: 17-4PH Stainless (Silver), 6Al / 4V Titanium (Gold)
• Spindle Length: 57mm
• Traction Pins: 8 adjustable per side
• Pin Length: 8mm
• Inner Bearing Type: Igus LL-glide bearing
• Outer Bearing Type: Enduro MAX cartridge bearing
• Endcap: Hex alloy
• Spindle Material: Forged SCM 435 Chromoly Steel
• Spring Material: 300 series stainless steel
• Max Rider Weight: No restriction
• Weight: 479g per pair (Silver), 445g per pair (Gold)
• Included Cleat Type: 15° / 20° Standard Release, 6° Float
• Cleat Notice: Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.
• Warranty: 5 years
